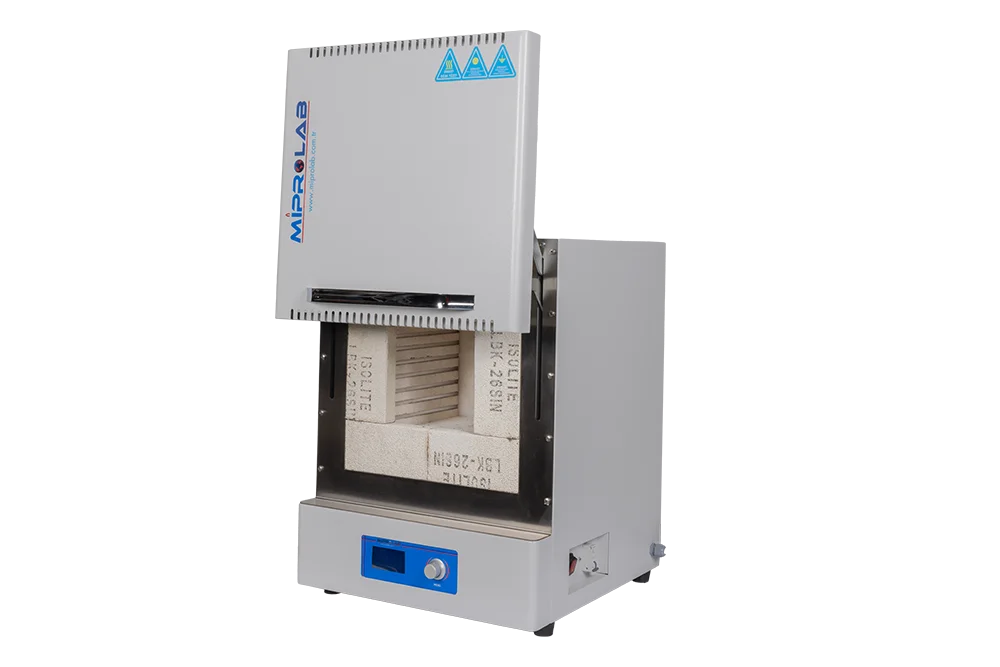

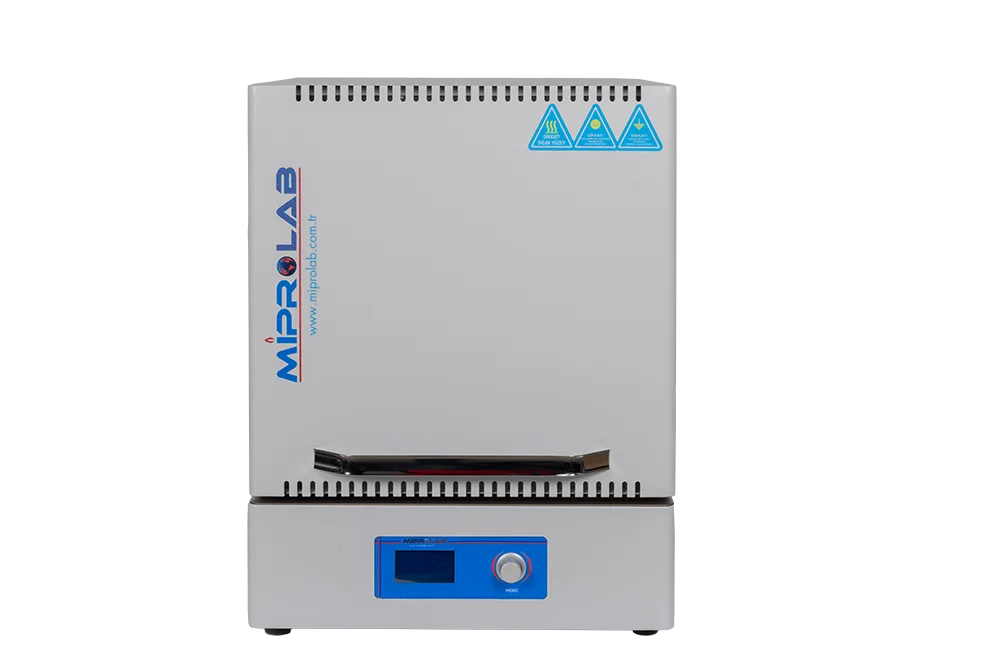

MKF SERIES ASH FURNACES (TOP-OPENING)
STRONG AND UNIQUE DESIGN
MKF series ovens feature a firebrick chamber, providing exceptional heat distribution and rapid heating. They feature a safer design with air-cavity insulation that minimises external surface temperature. With their ideal design for different applications in quality control and R&D laboratories, they are easy and intuitive to use. A flue is provided for any smoke that may occur during operation.
ADVANCED SYSTEM
The programmable PID microprocessor-based control system allows the set temperature values to be stored in memory. It features a cover that can be easily opened sideways or upwards and a safety mechanism that cuts off the heating when the cover is opened. The control system sounds an alarm in the event of a temperature sensor failure and stops heating when the temperature exceeds the maximum set temperature.
A Liquid Crystal Display (LCD) showing the temperature (optional touch screen) is available.
Optionally available; data control via computer can be provided using a USB, RS 232 or Ethernet connection.
OPTIONAL REQUESTS
- Customised Production with Specific Dimensions and Features (Dimensions/Software/Program),
- • Data control via computer using USB, RS 232 or Ethernet connection.
Different models according to user needs: 4, 8, 12, 22 litres.
| MKF-108 | MKF-112 | ||
| CAPACITY | 8,3 L | 12,5 L | |
| INTERNAL DIMENSIONS mm | 190x190x230 | 250x220x220 | |
| EXTERNAL DIMENSIONS mm | 370x540x440 | 370x540x440 | |
| TEMPERATURE | 1100-1200 ºC | 1100-1200 ºC | |
| VOLT | 220 Volt 50Hz | 220 Volt 50Hz | |
| AKIM | 13,5 AMP | 18,5 AMP | |
| POWER | 3000 W | 4000 W | |
| WARM-UP TIME | 60 DK | 60 DK | |
| SENSITIVITY | % 1 Degree | % 1 Degree | |
| NUMBER OF PHASES | 1 | 1 | |
| THERMOCOUPLE | CrNİ K TIP | CrNİ K TIP | |
| NET WEIGHT (kg) | 57 | 60 | |
| PACKAGED WEIGHT (kg) | 62 | 65 | |
