NEW GENERATION SYSTEM

Performance at high and precise operating temperatures is achieved through an externally heated cell and a PID microprocessor-based control system.

Thanks to the digital vacuum controller, the vacuum can be programmed and the drying process can be carried out according to the programmed vacuum value.

The microprocessor-based control system, with its LCD display, offers easy operation for temperature and time settings.

Vacuum and dry air or inert gas control is provided by two valves connected to the work cabinet.

Heating/drying, storage and related testing processes in an oxygen-free environment or with inert gases, ensuring no oxidation occurs.

Analogue manometer for monitoring the vacuum level inside the cell.

VARIOUS USAGE VOLUMES

Different usage volumes (30-60-90-120 litres) have been designed to meet user needs.

A wide operating temperature range for different applications (0°C to 250°C) allows the user to control both temperature and vacuum (in the range of 10 to 750 mm/Hg) simultaneously.

SOLID DESIGN

High-strength stainless steel cells provide resistance to vacuum, corrosion and aerosols composed of many chemicals.

Silicone cell gaskets provide advantages for temperature and vacuum.

Thanks to the rounded cells, cleaning can be done easily.

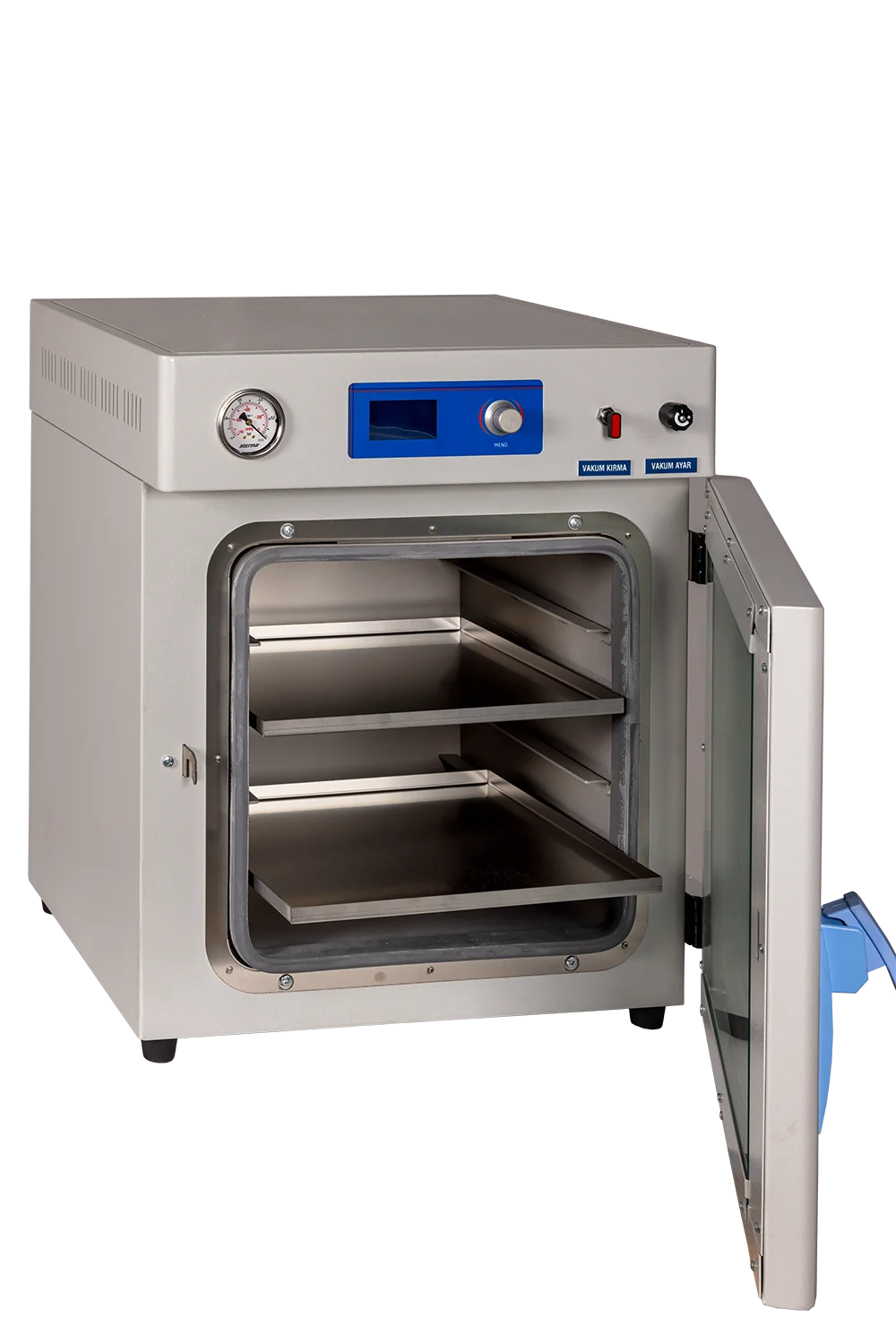

The observation window made of tempered glass located on the door allows samples to be observed during operation.

A single-piece silicone gasket that can be easily attached to the body.

OPTIONAL REQUESTS

• Customised Production (Measurement/Software/Program),
• • With 4.3 / 5.5 and 7.2 Inch Screen Options.
• • Internal Memory (125 Days)
• • Stainless steel outer casing for corrosion resistance in laboratories,
• • Digital vacuum gauge,
• • Printer connection option without the need for a computer connection thanks to the RS 232 output,
• • Ability to monitor temperature, time and pressure control from a computer with the interface programme.
